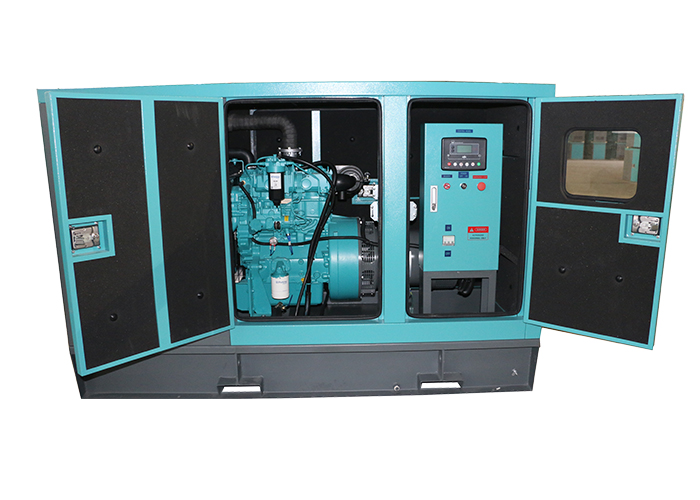

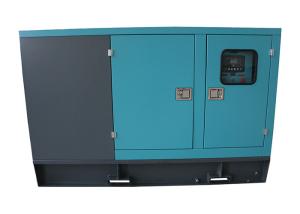

25KW 30KVA FAWDE Diesel Generator Set Brushless Self Excited Generator

Name: 25KW 30KVA FAWDE Diesel Generator Set Brushless Self Excited Generator
Brand: GPRO
Price: 1 USD

Quality 25KW 30KVA FAWDE Diesel Generator Set Brushless Self Excited Generator wholesale

Brand Name : GPRO

Model Number : GP-FW33S

Certification : ISO9001/ CE

Place of Origin : China（Mainland）

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 500 sets / Month

Delivery Time : 15 working days

Packaging Details : poly wooden case or plastic poly

Genset Model : GP-FW33S

Prime Power : 25KW 30KVA

Standby Power : 28KW 33KVA

Engine Brand : FAWDE

Engine Model : 4DW92-39D

Rated current(A) : 45.1 (A)

Warranty : 1 year or 1000 hours

Certificates : CE, ISO9001

Contact Now

25KW 30KVA FAWDE Generator , Brushless Self Exciting Generator

Product describition

1. SPECIFICATIONS OF GEN-SET
1.1	Set Model	GP-FW33S
1.2	Prime at 50HZ, 40℃ ambient	25KW 30KVA
1.3	Standby at 50HZ, 40℃ ambient	28KW 33KVA
1.4	Rated Gen-set output	400/230V 50Hz/60HZ
1.5	Rated Relative humidity	≤ 60 %
1.6	Dimension (L×W×H)	Open: 1800x760x1150 Silent: 2320x1060x1150
1.7	Weight	Open: 800kg, Silent: 1100kg
1.8	Fuel consumption 100% prime load	7
1.9	Structure of Gen-set	The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
2	Control system (Optional)	Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1	Engine Brand	FAWDE/Xichai
2.2	Engine Model	4DW92-39D
2.3	Governor/Class	Mechanical or Electronic
2.4	Cylinder NO.	4
2.5	Engine build	Line
2.6	Emission compliant	Stage II
2.7	start-up method	24V, electric
2.8	Air intake type	Natural
2.9	Cooling mode	Water Cooling
2.10	Bore and stroke	102×118 mm
2.11	Compression ratio	17:01
2.12	Displacement	3.86
2.15	Lubrication oil capacity	12.5L
2.16	Oil consumption	0.06
2.21	27℃ air consumption ( m³/ min)	2.6
2.22	Fuel type	#0 Diesel (Natural temperature)
2.23	Filter system	Adopt whole changeable lubricating oil, fuel filter and air filter
2.24	Exhaust system	Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1	Alternator Model	G184F
3.2	Alternator Type	A.C. Synchronous
3.3	Rated Voltage	230/400V
3.4	Rated Frequency	50HZ
3.5	Rated speed	1500 RPM
3.6	Voltage regulation mode	Auto
3.7	Alternator voltage regulation	±0.5%
3.8	Exciting mode	Brushless self exciting
3.9	Power factor	0.8 (lagging)
3.10	Phase & wires	3 phase 12 wires
3.11	Rated currency	45.1A
3.12	Efficiency	0.862
3.13	Insulation class	H
3.14	Protection class	IP23
3.15	Single load step to NFPA110	100%
3.16	Standards	IEC34-1,NEMA1
3.17	Max. Ambient Temperature	40℃
3.18	Min. Ambient Temperature	- 20℃
3.19	Max. altitude	1000m
3.20	Weight	156KG

25KW 30KVA FAWDE Diesel Generator Set Brushless Self Excited Generator

Why choose us:

Description:

Wuxi Gpro Power Solution Co., Ltd ltp focuses on China's generator products and services.In the field of power generation for more than 10 years, all of our generators are designed and manufactured to provide full power performance and rated generators for actual capacity. The company and many well-known enterprises at home and abroad to maintain a long-term strategic friendship and cooperation.

1. Our warranty is 1 year or 1000 hours, whichever comes first.
2. Global warranty is available based on the engine and alternator of your choice.
3. The payment method is T/T 30% advance and 70% of the balance should be paid prior to shipment.
4. Our standard delivery time is 20 to 30 days.

We supply Generator Sets from 2kva to 3000kva.

If You Are Interesting In GPRO, Pls Contace Us Freely ,Welcome To Visit GPRO!!
