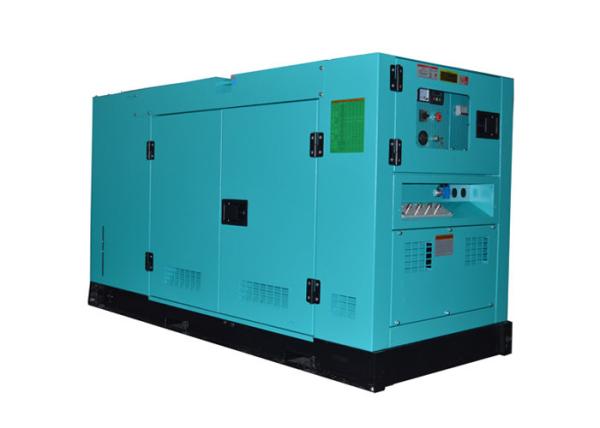

AC Three Phase Liquid Cooling 30kw Diesel Generator , Italy FPT Generator
| Technical specification |
| Genset Model | GP50FPS |
| Prime Power | 36KW/45KVA |
| Standby Power | 40KW/50KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 72.2A |
| Genset Structure | SILENT |
| Dimension | 2300×950×1260mm |
| Net Weight | 1150KG |
| Noise level | 70 dba @ 7 meters |
| Engine Model | FPT FPT/NEF45SAM1A |
| Engine Features | 4-cylinder,4 stroke,natural aspirated |
| Bore * Stroke | 104mm × 132mm |
| Displacement | 4.5L |
| 12-hour Power(kw) | 41.5KW/1500 |
| Fuel Consumption L/H | 11.3L/H |
| Compression Ratio | 17.5:1 |
| Governor type | Mechnical |
| Alternator Model | MECC ALTE/ECO32-1L/4 |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler Panel | Deepsea/ ComAp/ Smartgen |
There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.
ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS
2.SynchronizationSystem
3.External daily fuel tank
4.Silent Canopy
5.Trailer
6.Auto Fuel Pump
7.Fuel and Water Separator
8.Lub Oil Heater
9.Coolant Heater
10.Fuel Drain Pump
Advantages:
. We are a powerful and unity sales team:
. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.
90% of our sales team members are with more than 5 years of experience in the generator field.
. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
